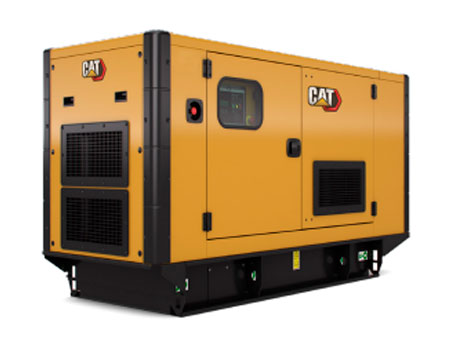

Sound Attenuated Level 2 Enclosures
24 – 220 kVA
Range The sound attenuated Level 2, factory installed enclosures incorporate internally mounted critical level silencers. They are the premium enclosure offering for this range, designed for safety and aesthetic value on an integral fuel tank base. Extremely durable and weather resistant, these enclosures are designed to resist corrosion and handling damage. The enclosures are the result of continuing research and development by our specialist acoustic engineers. These enclosures reduce sound levels to comply with the Stage 2 levels of the European Community Directive 2000/14/EC which became effective January 3, 2006.
Features
Durable and Robust Construction
• Manufactured from galvanized steel
• Advanced powder-coated paint finish
• Single-piece main roof
• Base frame extends beyond enclosure, protecting against handling damage
• Minimal external fixings exposed to environment
• Zinc-plated fasteners
• Corner posts and air handling units manufactured from high-grade engineering thermoplastic
Security and Safety
• Secure, lockable doors prevent unauthorized access to control panel, fuel fill, and battery
• Emergency stop button mounted on exterior, convenient to control panel
• Cooling fan and battery charging alternator fully guarded
Excellent Service and Maintenance Access
• Side-hinged doors on both sides of the enclosure incorporate lift-off hinges at 45°
• Radiator fill via removable, flush-mounted rain cap fitted with compression seal
• Lube oil cooling water drains piped to baseframe side rail, on exterior
• Removable end panels allow access to radiator, exhaust outlet, and alternator rear
• Doors positioned for optimum access of frequently serviced items
Transportability
• Optional tested and certified lifting arch
• Lifting and drag points on base frame facilitate handling from both sides
